Launching The Map Editor[ | ]

The Map Editor can be launched through the Tools section of your steam library. Alternatively you can run the map editor by running the game application with the parameter "-mapedit".

Creating A New Map[ | ]

Creating a new map is accomplished by loading a .SCENARIO file that does not yet have an existing map file. When the Map Editor is loaded with a .scenario and the map files are not found, they are created automatically (named the same as the scenario name) and located inside the \Scenario\Custom directory.

Creating A .SCENARIO File[ | ]

Using The ScenarioCreator[ | ]

See Scenario Creator Tutorial[ | ]

Using The Scenario Template[ | ]

  • Located in the game directory's \Scenario\Custom folder there is a file named Scenario.template, open using any text editing software.
  • Change the following lines to include the files you wish and remove the first two slashes ("//") to un-comment the line:
    • //#include "W2020.CVP", "MAPS\"
    • //#include "W2020.REGIONINCL", "MAPS\"
    • //#include "GC2020.WMDATA", "MAPS\DATA\"
    • mapfile "MapEditor"
      • Change "MapEditor" to be the name of the .MAPX file being used (do not include the file extension).
    • #include "MapEditor.OOF", "MAPS\"
    • //#include "GC2020.OOB", "MAPS\ORBATS\"
    • savfile "mycache"
      • Change "mycache" to be the name of the .SAV file being used as the cache file (do not include the file extension).
      • See Creating a Cache
    • Add any settings and options in the lines between "&&GMC" and "&&END"
  • Save the file as a new .SCENARIO file in the \Scenario\Custom folder.

Creating The Map Files[ | ]

Once you have a .SCENARIO file created, launch the map editor and select the scenario name from the list. When the map editor loads the .SCENARIO file the .MAPX and .OOF file will be created automatically, named the same as the .SCENARIO file name and placed in the game directory \Maps folder.

Editing An Existing Map[ | ]

To edit an existing map first locate the .SCENARIO file that contains the map you wish to edit. Copy the .SCENARIO file to the game directory's \Scenario\Custom folder and launch the Map Editor. Select the scenario name from the list of options to begin editing. Be careful of overwriting existing maps as many .SCENARIO files use the same map files, you may wish to back up your .MAPX and .OOF files prior to editing.

Using The Map Editor[ | ]

Placing Facilities[ | ]

Tabs

To place facilities on the map first click on the "Place Containers And Components" button (left-most button of the set pictured above). All facilities available to place will be located in a list on the left side of the user interface panel. There are two ways of placing facilities using the Map Editor.

Painting Facilities Directly To The Map[ | ]

To paint facilities directly to the map make sure the lock icon appears unlocked Unlocked if it is currently locked, click to unlock it. Select a facility to place from the list, and click on the map where you would like it to appear. Setting facilities using this method will always place them in the center hex slot.

Placing Facilities Using The Hex View[ | ]

Hexview

To place facilities using the hex view select the hex on the map using the mouse. This will get the current facilities on the hex and place them in the relevant position on the hex view, if the hex is empty the hex view will remain empty. Select the facility you wish to place inside the hex from the list to the left. Once the facility is selected click on the position inside the hex view you would like to facility to be located on. This will place the facility in the hex, if no central facility is placed the Map Editor will place the correct facility in the center slot on map save.

Filtering The Facility List[ | ]

You can filter the list of facilities down to facilities that are currently in your "regional filter", using the checkbox at the bottom left of the user interface panel. The default setting for the regional filter is the currently selected region. The filter can be changed to currently selected block and to be worldwide.

Filters

From left to right: Selected Region, Selected Block, Worldwide.

Population[ | ]

To add population to a hex, select a hex on the map using the mouse. Using the slider pictured below adjust the population as needed.

Population

Reset Hex[ | ]

To reset a hex back to default settings, select a hex on the map using the mouse. With the hex you would like to reset selected, click on the reset hex Resethex button. This will remove any population and upgrades to the hex.

Theater Reset[ | ]

To reset all theaters inside of non-UN territory to the values listed in the .CVP file, click on the Theater Reset Theatrereset button.

Adding Transportation[ | ]

To add roads or rails, select them from the list. With map painting unlocked, click first your start point, then your end point. The road/rail will be placed. Note that there are two "layers" of transportation. This means if you have to roads crossing a hex, then add a rail, it is likely that the graphic for one of the pieces will not be shown. Units in the hex will still get the relevant transportation benefits, this is just a visual limitation.

Remove Transportation[ | ]

Removing transportation (Roads / Rails) using the map editor can be done in two ways.

Remove Transportation Per Hex[ | ]

To remove a transportation upgrade on a hex, select the hex on the map using the mouse. Once selected click on either of the Remove Transport Layer Removetransport buttons. There are two layers of transportation upgrades available per hex, but it is impossible to tell which one you need to remove, try removing one then the other if it does not work.

To replace accidentally removed transportation see Adding Transportation Upgrades.

Remove Transportation Map Mode[ | ]

To remove many transportation upgrades it is recommended to use this map mode. Clicking on the Remove Transportation Map Mode Transportmapmode button will enable the map mode. With the map mode enabled now when you click on a hex it will remove all transportation upgrades located inside the hex, until the map mode is toggled off using the same button.

Remove Facilities[ | ]

Removing facilities using the map editor can be done in two ways.

Remove Facilities Per Hex[ | ]

To remove facilities inside of a hex, select the hex on the map using the mouse. Once selected use the hex view to select the facility to be removed.

Hexview

With the facility selected click the Remove Facility Removefacilites button, this will remove the facility from the hex.

Remove Facilities Map Mode[ | ]

To remove many facilities it is recommended to use this map mode, although it will remove all facilities in the hex. Clicking the Remove Facilities Map Mode Facmapmode button will enable the map mode. With the map mode enabled now when you click on a hex it will remove all facility upgrades located inside the hex, until the map mode is toggled off using the same button.

Painting The Map[ | ]

There are five separate areas that the Map Editor allows you to paint on the map. They are Terrain, Infoset, Resources, Theaters, and Battlezones. These can be painted individually or combined to paint several or all at once. To enable map changes make sure the lock icon Unlocked is unlocked. Right-clicking a hex from the map will take the properties from that hex to apply to others as you paint.

Types

Terrain[ | ]

To enable painting terrain types on the map click the Terrain button from the group pictured above. With the terrain painting enabled, select a terrain type from the list on the left and click on the map to paint the terrain type.

Infoset[ | ]

The Infoset is information on who the hex belongs to, the block is the block number, the owner is the region number of the owner, and the loyalty is who the hex has loyalty towards. Click the Infoset button from the group pictured above to enable painting the Infoset. With Infoset enabled click the map to paint it on the map.

Resources[ | ]

To enable painting resources on the map click the Resource button from the group pictured above. With the resource painting enabled, select a resource from the list on the left , and then select the resource options as pictured below and click on the map to paint the resource.

Resopt

Theaters[ | ]

To enable painting theaters on the map click the Theater button from the group pictured above. With the theater painting enabled, enter a theater number into the theater field and click on the map to paint the theater.

Battlezones[ | ]

To enable painting battlezones on the map click the Battlezone button from the group pictured above. With the battlezones painting enabled, enter a battlezone number into the battlezone field and click on the map to paint the battlezone.

Changing Hex Name[ | ]

Population

To change the hex name select the hex you would like to name and type it into the box above the population slider, as pictured above.

Co-Ordinate System[ | ]

Coord

The co-ordinate system is useful for knowing the x and y position of your currently selected and moused over hexes as well as their names. The top left and top right boxes hold the selected hex name and position, the bottom left and bottom right boxes hold the moused over hexes name and position.

Map Settings[ | ]

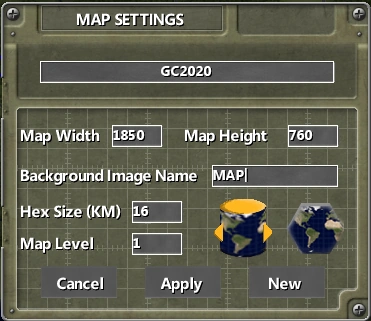

Mapsettings

Clicking on the Map Settings Mapsettings1 button will bring up the Map Settings window. Here you can edit the existing maps settings as well as create a new map using the settings listed. The settings are as listed:

  • Name
    • Set the name of the map files to be created/saved.
  • Map Width
    • Set the number of hex tiles along the x axis
  • Map Height
    • Set the number of hex tiles along the y axis
  • Background Image Name
    • Set the image to be used as the background image (do not use the file extension, "MAP.PNG" becomes "MAP". This image should be placed in the \Graphics\Imagery folder.)
  • Hex Size
    • Set the distance in kilometers across a single hex
  • Map Level
    • Set the current maps level (From Supreme Ruler 2010, currently unused in Supreme Ruler Ultimate)

Save Map[ | ]

Clicking on the Save Map Save1 button will save the current map using the current name and settings as shown in the Map Settings window. The map files will be located in the \Maps folder.

Load Map[ | ]

Load2

Clicking on the Load Map Load1 button will bring up the Load Map window. Here it will list every scenario found in the game's \Scenario\Custom folder (defined by a text file with the .SCENARIO extension). Selecting a scenario by double clicking or clicking the Load Map Load1 button will open the map to be edited.

All information about a Scenario (which map file is used, which equipment/facility list is used, etc) is defined by the .SCENARIO files.

Quit[ | ]

To quit the Map Editor, first make sure to save any changes you have made, then click the Quit Map Editor Quit button and confirm you wish to exit.

Backups[ | ]

When there is a /Backups folder inside the /Maps directory, the Map Editor will create 3 kinds of backups.

  • When quitting the Map Editor backups will be made of both the .MAPX and .OOF files
  • Periodically backups will be made of both .MAPX and .OOF files
  • When the fill tool is selected a backup will be made of the .MAPX file
